Technical parameters:
Max door weight with 2 hinges：80kg
Maximum opening angle：180°
Minimum thickness of door leaf：45mm

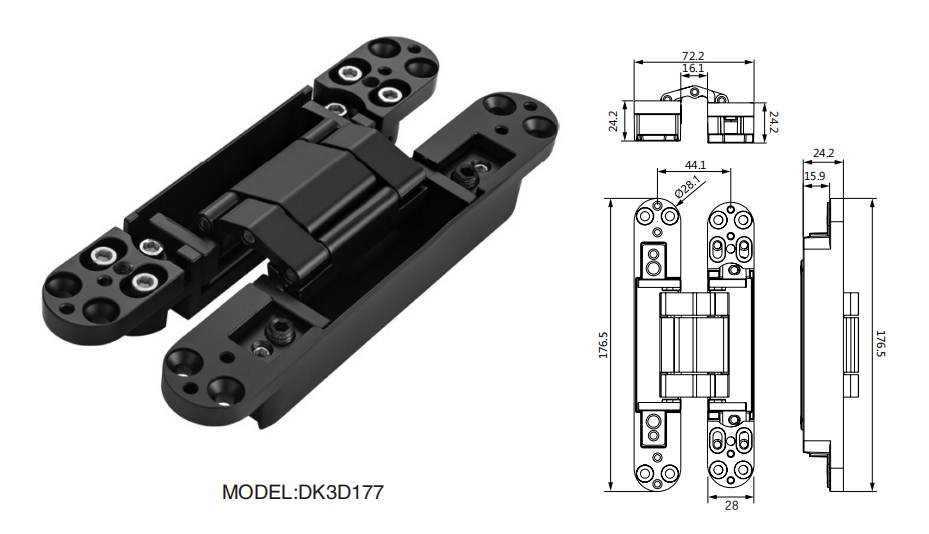

Product size：177x28mm
Main materials：Zinc alloy
It can realize up and down adjustment of±3.0mm, left and right adjustment of±3.5/2.0mm. front and rear adjustment of ±1.0mm
3D surface treatment：Black、Silver、AB、AC、GP、SC、SN
