Technical parameters:
Maximum load capacity of one hinge：10kg
Maximum opening angle：180°
Minimum thickness of door leaf：18mm

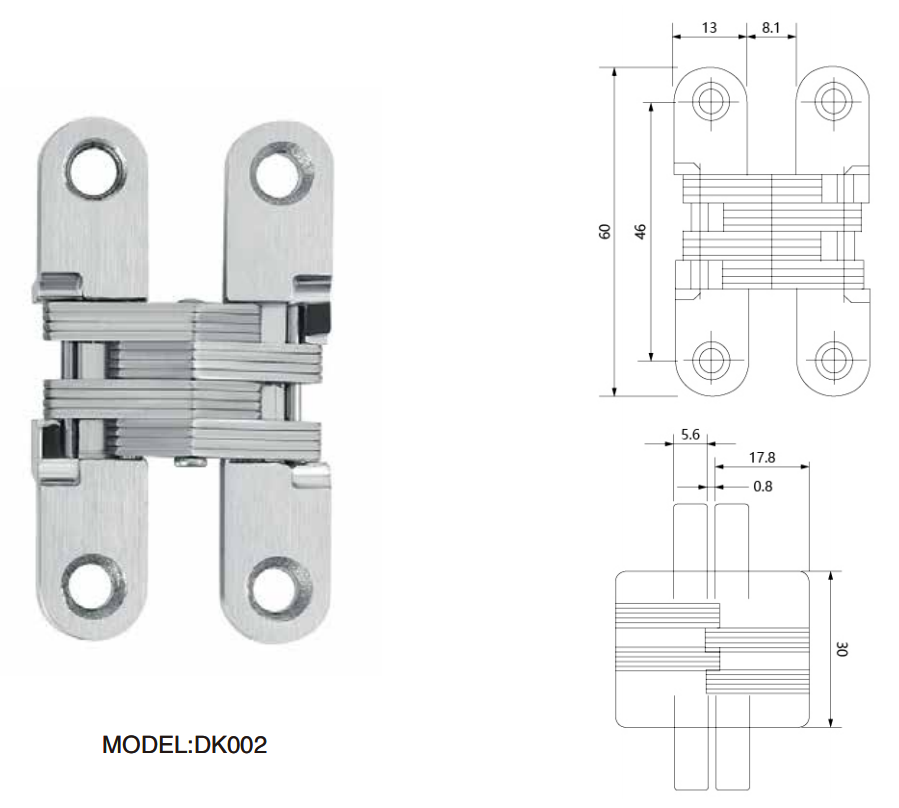

Product size：60x13mm
Main materials：Zinc alloy+stainless steel
Surface treatment: SC、SN、AB、AC、GP、CP
Installation method:Depending on the thickness, height,width and weight of the door, it can be determined according to the actual situation.The standard is 3 for each door,and 4 for the door more than 2300mm high.
